• 6-speaker audio system
• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system
• Chevrolet MyLink audio system, 4.2" Diagonal color screen with AM/FM stereo USB ports, auxiliary jack, SD card slot, Bluetooth® streaming audio for music and most phones, hands-free smartphone integration, Pandora Internet radio and voice-activated technology for radio and phone (Upgradeable to (IO5) Chevrolet MyLink 8" Diagonal Color Touch audio system or (IO6) Chevrolet MyLink 8" Diagonal Color Touch audio system with Navigation.)
• Cruise control, steering wheel-mounted
• Door locks, power
• Driver Information Center 4.2-inch diagonal color display, includes driver personalization, warning messages and vehicle information
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Double Cab and Crew Cabs include second row floor mats)
• Mirror, inside rearview auto-dimming
• Remote Keyless Entry
• Seat trim, Cloth
• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• Seats, front 40/20/40 split-bench, 3-passenger. Available in cloth or leather. Includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar, lockable storage compartment in seat cushion, and storage pockets. (Leather with (KA1) heat is an available extra charge option with (H1Y) Jet Black leather appointed interior trim and requires (PCY) LT Fleet Convenience Package. Upgradeable to (A95) front bucket cloth seats.) (Leather with (KA1) heat is an available extra charge option with (H1Y) Jet Black leather appointed interior trim and requires (PCM) LT Convenience Package. Upgradeable to (A95) front bucket cloth seats.)
• Single-slot CD/MP3 player
• Steering column, manual Tilt-Wheel
• Steering wheel audio controls
• Steering wheel, leather-wrapped with audio and cruise controls
• Visors, driver and front passenger illuminated vanity mirrors
• Windows, power with driver express up and down and express down on all other windows

• Air cleaner, high-capacity
• Alternator, 150 amps
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr maintenance-free with rundown protection and retained accessory power
• Chassis, single rear wheel
• Differential, heavy-duty locking rear
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, fully-boxed, hydroformed front section
• Pickup box, Wideside
• Steering, Recirculating ball
• Suspension Package, Standard includes 51mm twin tube shock absorbers and 33mm front stabilizer bar
• Trailer brake controller, integrated (Standard with (E63) pickup box. Available to order with (ZW9) pickup box delete.)
• Trailering equipment Trailering hitch platform 2.5" with a 2.0" insert for HD, 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector to hook up parking lamps, backup lamps, right and left turn signals, an electric brake lead, battery and a ground, The trailer connector also includes the 4-way for use on trailers without brakes - park, brake/turn lamps (Will be deleted if (ZW9) pickup box delete or (9J4) rear bumper delete is ordered.)
• Transfer case, electronic shift with rotary dial controls (Requires 4WD models.)

• Daytime Running Lamps with automatic exterior lamp control
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist

Lt Preferred Equipment Group

• Standard Equipment

Skid Plate Package, Frame-Mounted Shields

• Front Underbody Shield Starting Behind Front Bumper And Running To First Cross-Member
• Protecting Front Underbody
• Oil Pan
• Differential Case And Transfer Case

Z71 Package, Off-Road

• Twin Tube Rancho Brand Shocks
• (Jhd) Hill Descent Control
• (Nzz) Underbody Shield. Also Includes Brushed Metal Z71 Door Sill Plate
• Unique Z71 Gauge Cluster
• Unique Finish Interior Trim Plates
• Unique Lower Bumper Appearance
• Unique Grille Design With Z71 Badge And Z71 Pickup Box Decals

Additional Packages

• Air Bags
• Single-Stage Frontal And Thorax Side-Impact
• Driver And Front Passenger
• Head Curtain Side-Impact
• Front And Rear Outboard Seating Positions (Always Use Safety Belts And Child Restraints. Children Are Safer When Properly Secured In A Rear Seat In The Appropriate Child Restraint. See The Owner's Manual For More Information.
• Alternator
• 220 Amps
• Engine
• Vortec 6.0L Variable Valve Timing V8 Sfi E85-Compatible
• Flexfuel Capable Of Running On Unleaded Or Up To 85% Ethanol (360 Hp [268.4 Kw] @ 5400 Rpm
• 380 Lb-Ft Of Torque [515.0 N-M] @ 4200 Rpm) With (E63) Fleetside Pickup Box; (322 Hp [240.1 Kw] @ 4400 Rpm
• 380 Lb-Ft Of Torque [515.0 N-M] @ 4200 Rpm) With (Zw9) Pickup Box Delete (Std)
• Fog Lamps
• Front
• Halogen
• Hill Descent Control
• Jet Black
• Cloth Seat Trim
• Lamps
• Smoked Amber Roof Marker
• License Plate Kit
• Front
• Paint
• Solid
• Pickup Box
• Wideside (Std)
• Provision For Cab Roof-Mounted Lamp/Beacon Provides An Instrument Panel-Mounted Switch And Electrical Wiring Tucked Beneath The Headliner For A Body Upfitter To Connect A Body-Mounted Warning Or Emergency Lamp
• Rear Axle
• 4.10 Ratio
• Silver Ice Metallic
• Tires
• Lt265/70R18e All-Terrain
• Blackwall
• Trailer Brake Controller
• Integrated
• Transmission
• 6-Speed Automatic
• Heavy-Duty
• Electronically Controlled With Overdrive And Tow/Haul Mode. Includes Cruise Grade Braking And Powertrain Grade Braking (Std)

• Z71 PACKAGE OFF-ROAD includes twin tube Rancho brand shocks (JHD) Hill Descent Control (NZZ) Underbody Shield. Also includes brushed metal Z71 door sill plate unique Z71 gauge cluster unique finish interior trim plates unique lower bumper appearance unique grille design with Z71 badge and Z71 pickup box decals
• HILL DESCENT CONTROL
• PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON provides an instrument panel-mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp
• TRAILER BRAKE CONTROLLER INTEGRATED
• REAR AXLE 4.10 RATIO
• LICENSE PLATE KIT FRONT
• GVWR 10 000 LBS. (4536 KG) WITH SINGLE REAR WHEELS
• CHEVROLET MYLINK AUDIO SYSTEM 4.2" DIAGONAL COLOR SCREEN WITH AM/FM STEREO USB ports auxiliary jack SD card slot Bluetooth® streaming audio for music and most phones hands-free smartphone integration Pandora Internet radio and voice-activated technology for radio and phone (STD)
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER. Includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar lockable storage compartment in seat cushion and storage pockets. (STD)
• ENGINE VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE FLEXFUEL capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) with (E63) fleetside pickup box; (322 hp [240.1 kW] @ 4400 rpm 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) with (ZW9) pickup box delete (STD)
• ALTERNATOR 220 AMPS
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)
• TIRES LT265/70R18E ALL-TERRAIN BLACKWALL
• PICKUP BOX WIDESIDE (STD)
• SNOW PLOW PREP PACKAGE includes power feed for backup and roof emergency light (KW5) 220-amp alternator with gas or CNG engine or (KH5) dual 150-amp alternators with diesel engine forward lamp wiring harness (TRW) provision for cab roof mounted lamp/beacon (NZZ) underbody shields and Heavy-Duty front-springs.
• PAINT SOLID
• SILVER ICE METALLIC
• AIR BAGS SINGLE-STAGE FRONTAL AND THORAX SIDE-IMPACT DRIVER AND FRONT PASSENGER AND HEAD CURTAIN SIDE-IMPACT FRONT AND REAR OUTBOARD SEATING POSITIONS (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.
• LT PREFERRED EQUIPMENT GROUP includes standard equipment
• WHEELS 18" (45.7 CM) FORGED POLISHED ALUMINUM includes 18" x 8" (45.7 cm x 20.3 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered. (STD)
• TIRE PRESSURE MONITOR SYSTEM (DOES NOT APPLY TO SPARE TIRE)
• LAMPS SMOKED AMBER ROOF MARKER
• SKID PLATE PACKAGE FRAME-MOUNTED SHIELDS includes front underbody shield starting behind front bumper and running to first cross-member protecting front underbody oil pan differential case and transfer case
• JET BLACK CLOTH SEAT TRIM
• FOG LAMPS FRONT HALOGEN
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hitch
• Tow Hooks
• ABS
• 4-Wheel Disc Brakes
• Tires - Front All-Season
• Tires - Rear All-Season
• Heated Mirrors
• Power Mirror(s)
• Integrated Turn Signal Mirrors
• Privacy Glass
• AM/FM Stereo
• Auxiliary Audio Input
• Smart Device Integration
• CD Player
• Satellite Radio
• Split Bench Seat
• Driver Adjustable Lumbar
• Cloth Seats
• Pass-Through Rear Seat
• Rear Bench Seat
• Floor Mats
• Adjustable Steering Wheel
• Leather Steering Wheel
• Power Windows
• Keyless Entry
• A/C
• Auto-Dimming Rearview Mirror
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Traction Control
• Stability Control
• Daytime Running Lights
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Navigation from Telematics

• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 7050
• Curb Weight - Front (lbs): 3825
• Curb Weight - Rear (lbs): 2870
• Gross Vehicle Weight Rating Cap (lbs): 10000
• Gross Combined Wt Rating (lbs): 20500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13900
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1390
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 13900
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3475
• Maximum Trailering Capacity (lbs): 17100
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 7050
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 7050
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 51.00
• Shock Absorber Diameter - Rear (mm): 51.00
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: QWF
• Rear Tire Order Code: QWF
• Front Tire Size: LT265/70R18E
• Rear Tire Size: LT265/70R18E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 18 x 8.0
• Rear Wheel Size (in): 18 x 8.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: 16.00
• Steering Ratio (:1), At Lock: N/A
• Turning Diameter - Curb to Curb (ft): 51.8
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 153.70
• Length, Overall w/o rear bumper (in): 239.5
• Width, Max w/o mirrors (in): 80.51
• Height, Overall (in): 78.15
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 151.10
• Cab to Axle (in): 41.26
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 39.33
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.42
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.86
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 51.02
• Cargo Box (Area) Height (in): 21.22
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 61.0
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Front Hip Room (in): 60.73
• Second Head Room (in): 40.50
• Second Leg Room (in): 40.93
• Second Shoulder Room (in): 64.33
• Second Hip Room (in): 60.24
• Summary

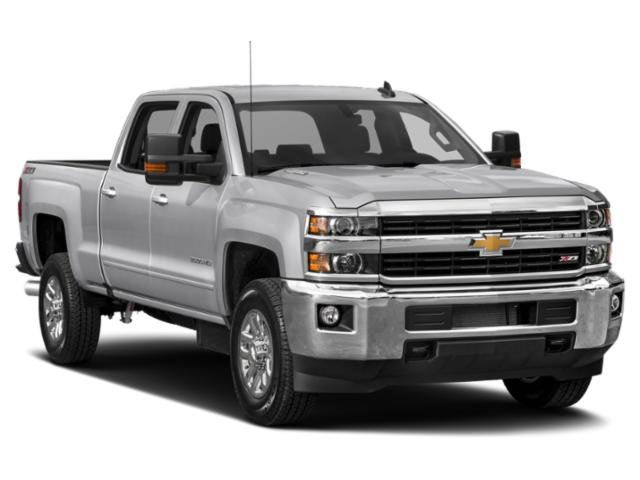

• Vehicle Name: Chevrolet Silverado 3500HD
• Body Style: Crew Cab Pickup
• Body Code: E63
